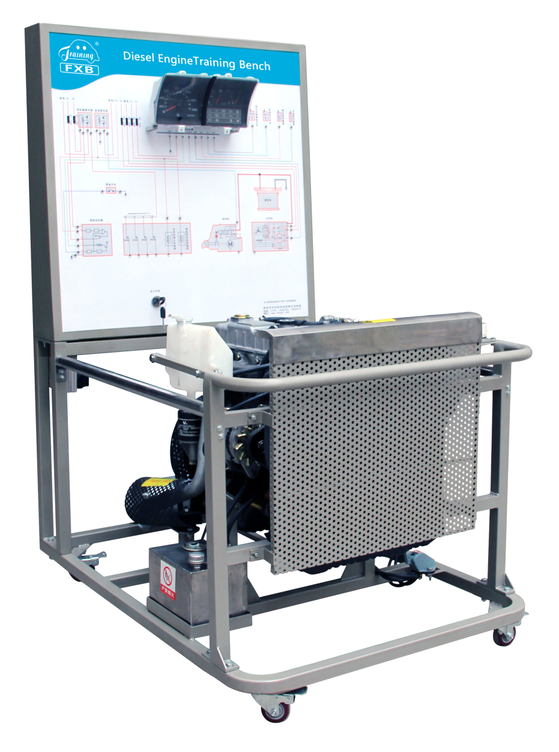

The device is designed based on the Isuzu 4JB1 diesel engine to simulate engine startup, speedup, slowdown and other actions, so as to illustrate the structure and working principle of ordinary diesel engines. The device applies to automobile engine and maintenance training courses of secondary and senior vocational schools, ordinary education and training institutions.
Features
| Equipment Model | Appaication Auto Model | Application Auto Model Features |
| FXB-A16001 | Isuzu 4JB1 | Inline four-cylinder, Displacement: 2.8 liters, maximum power: 70KW |
1.Real and operable diesel engine; illustrate the structure and working process.
2.The training platform is made of advanced aluminum-plastic plate with characteristics of not less than 4mm thick, corrosion resistance, impact resistance, pollution resistance, fireproof, and moistureproof. Its surface are processed by special craft and spraying primer. Never fade color circuit diagram and working principal diagram are painted on the board whose surface coating with varnish. The trainees can learn and analyze the working principle of the control system by referencing the diagram and control with the real object.
3.The practical training platform is installed with automobile meters to illustrate changes of parameters including the engine speed, water temperature, fuel pressure light and charging indicator light.
4.Detection terminals are installed on the practical training platform. On the platform, operators can detect resistance, voltage, current, and signals of various pins such as relays, electromagnetic valves and sensors.
5.A throttle controller is installed on the platform.
6.A master power switch, water tank protector, flywheel protector, among other protection devices, are installed on the practical training platform.
7.The practical training platform's base frame is made in steel and the surface is paint-coated. Self-retention wheels are installed to ensure that the platform is flexible, reliable and endurable.
8.Equipped with intelligent fault setting and appraisal system
Technical Parameter
1. Size: 1400mm x 1000mm x 1800mm (length x width x height)
2. Operating power supply: 12V DC
3. Fuel No.: Engine mode
4.fuel tank size: 10L
5. Operating temperature: -40℃ to +50℃
Basic configuration (unit)
|
No. |
Name |
Specification and model |
Unit |
Quantity |
|
1 |
Detection control panel |
With various detection terminals and a color circuit diagram |
Set |
1 |
|
2 |
A full set of meters |
|
Set |
1 |
|
3 |
Ignition switch |
|
Unit |
1 |
|
4 |
Ordinary diesel engine assembly |
Isuzu 4JB1 |
Set |
1 |
|
5 |
Fuel tank |
10L |
Unit |
1 |
|
6 |
Throttle controller |
|
Set |
1 |
|
7 |
Inlet and exhaust pipes (including protection covers) |
|
Set |
1 |
|
8 |
Water tank (including the stainless-steel protection cover) |
|
Set |
1 |
|
9 |
Accumulator |
95D31R, 12V 80Ah, 620CCA |
Set |
1 |
|
10 |
Relay |
Including: Startup and warm-up relays |
Set |
1 |
|
11 |
Fuse |
|
Unit |
1 |
|
12 |
Master power switch |
50A |
Unit |
1 |
|
13 |
Intelligent fault-setting and appraisal system |
FXB-688 |
Set |
1 |
|
14 |
Movable framework (with self-retention wheels) |
1400mm x 1000mm x 1800mm (length x width x height) |
Set |
1 |
