FXB-E01
About Feature Technical Parameter Basic Configuration


i.Features
1.The device is designed based on the dual-circuit brake system to illustrate the structure and working process of
the automobile brake system.
2.The training bench is installed with a vacuum pump to provide vacuum servo power. Pressure meters are installed on the fore
and rear braking lines to show changes in the pressure in the fore and rear braking cylinders.
3.The moveable shelf is made of high-intensity steel and the surface is paint-coated. Self-retention wheels are installed to
ensure that it is flexible and convenient.
4.The device applies to vehicle braking system and maintenance practical training courses of secondary and senior vocational
schools, normal education and training institutions. It can fully meet the needs for automobile braking system structure
working simulation and assembly and disassembly practicing. The laboratory device is multi-functional, easy to operate, and
reliable.

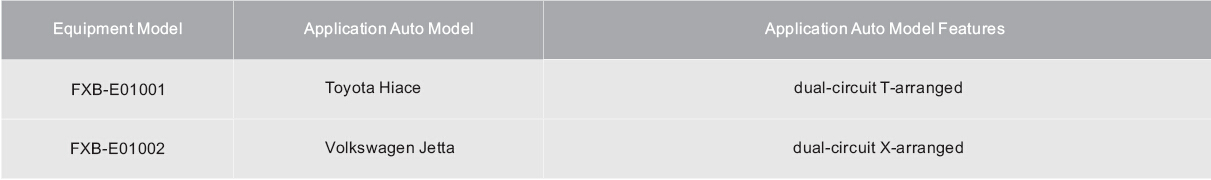

ii.Basic Parameter
1.Dimensions: 1800mm x 900mm x 1000mm (length x width x height)
2.External power supply: A.C. 220V ± 10% 50Hz
3.Operating temperature: -40℃ to +50℃
4.Pressure gauge: 0–150 kg/psi
5.Vacuum pump:
◆ Model: RS-1A ◆ Voltage: A.C. 220V 50Hz
◆ Power: 120W ◆ Pumping rate: 25 L/min
◆ Extreme pressure: 10–30 Pa
◆ Rotation speed: 1000 r/min
◆ Inlet diameter:Φ6
◆ Fuel consumption: 0.25 L
◆ Noise: ≤ 65
