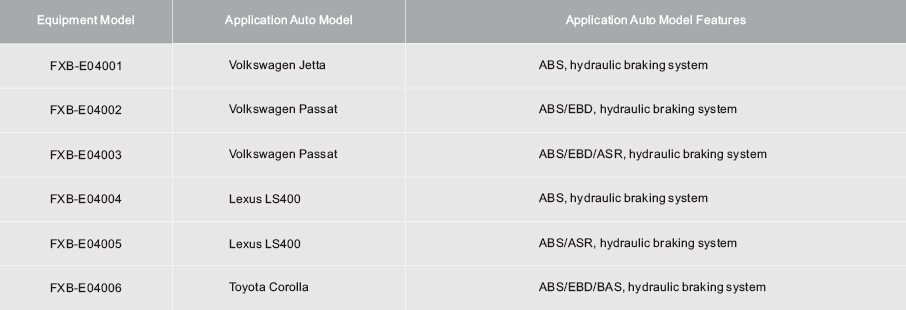

This device is designed based on the Volkswagen Passat ABS/EBD system and with an operating principle diagram to
demonstrate operation of the system. The device applies to theoretical teaching and maintenance training of the chassis
structure in secondary and senior vocational skill schools, normal education and training institutions. The device can be used
for structure display and operation demonstration of the ABS/EBD system.




1.A real ABS/EBD system is used to illustrate the structure of the system.
2.A three-phase asynchronous motor drives rotation of the front and rear shafts, simulating running of the automobile. When
an operator pushes down the brake pedal, the ABS/EBD system starts operating. The front and rear brake flaps keep rotating
slowly. The operator feels that the brake pedal is vibrating. In this way, the device demonstrates operation of the ABS/EBD
system.
3.The training bench is made of advanced aluminum-plastic plate with characteristics of not less than 4mm thick, corrosion
resistance, impact resistance, pollution resistance, fireproof, and moistureproof. Its surface are processed by special craft
and spraying primer. Never fade color circuit diagram and working principal diagram are painted on the board whose surface
coating with varnish. The trainees can learn and analyze the working principle of the control system by referencing the
diagram and the real object.
4.The training bench is installed with detection terminals to detect electric signals, for example, resistance, voltage, current,
and frequency, of pins of each sensor and electronic control unit (ECU).
5.The training bench is installed with six pressure gauges to display real-time hydraulic pressure of one master cylinder and
four brake cylinders.
6.The training bench is installed with a fault indicator lamp and a diagnosis socket ,which can connect to automobile decoder to
read fault codes checks ECU codes, reads and clears fault codes, and reads data streams, tests components, sets
parameters, and conducts wave analysis on the ABS electrical control system.
7.The training bench's base frame is made in steel and the surface is paint-coated. Self-retention wheels are installed to
ensure that the bench is flexible, reliable and endurable.
8.Equipped with intelligent fault setting and appraisal system, include fault setting, troubleshooting and assessment functions
etc.

1.Size: 1600mm × 1000mm × 1800mm (length x width x height)
2.Driving power supply: three-phase four-wire (three-phase five-wire 380±10% V 50 Hz)
3.External power supply: A.C. 220V ± 10% 50 Hz
4.Operating voltage: 12V DC
5.Operating temperature: -40℃ to +50℃
6.Master oil canal pressure meter 0–250 kg/psi
7.Pressure gauge for the brake cylinder: 0–100 kg/psi
8.Transmission:
◆ Model: CHE100-004G/5R5P-4
◆ Power: 4KW/5.5KW
◆ Input: AC 3PH 380 ±15% V 50/60 Hz
◆ Output: 9 A/13 A AC 3PH 0 – 380V 0 – 400 Hz
9.Three-phase asynchronous motor:
◆ Model: YT 100L2-4
◆ Voltage: AC 220V/380V 50Hz
◆ Current: 11.8 A/6.8 A
◆ Power: 3 KW
◆ Rotation speed: 1420 r/min
10.Vacuum pump:
◆ Model: RD-2
◆ Voltage: A.C. 220V 50 Hz
◆ Power: 370 W
◆ Pumping rate: 48 L/min
◆ Extreme pressure: 6.7 × 10 – 2 Pa
◆ Rotation speed: 1400 r/min
Inlet diameter: Φ8
Fuel consumption: 1 L
Noise: ≤ 68
